Locker Room Fixtures | Mirrors
Complete your locker room or facility with these commercial mirrors, ranging in different sizes and from popular brands. Whether you're looking for a tilt mirror, mirrors with shelves, or standard commercial mirrors, our selection of full length mirrors to vanity mirrors are perfect in fitness centers, office restrooms, schools, and more.
Brand
American Specialties (4)
Bobrick (4)
Bradley Corp. (2)
Categories
< Air Quality
< Bath & Body
< Cleaning
< Redo
< Safety
< Sale
< Wipes
< Facility
< Locker Room Fixtures
Mirrors
Price
USD 50 - USD 100 (5)
USD 100 - USD 150 (5)
USD 150 - USD 200 (7)
USD 200 - USD 250 (6)
Mirrors
10 results
Best Match
Mirrors
10 results
Bradley Corp.
Bradley Corp. Series Channel Frame Mirror
From $58.00
Bradley Corp BRA 781 | Channel Frame Mirror Bradley BRA 781 Channel Frame Mirrors are a high quality product for your next project. Whether you are installing these mirrors into an office building, hospital or school, the stainless steel frame makes this series an easy to maintain product with a modern style. Bradley BRA 781 is a mirror with roll-formed channel frame and theft-resistant mounting. FRAME One-piece, roll-formed stainless steel with bright annealed finish. Channel is 3/4" x 3/4" x 7/16" with 90 mitered corners. Double strength continuous integral stiffener on all sides for added strength. BACK Galvanized steel. MIRROR First quality 1/4" float glass triple-silver-plated with electro-copper-plated layer and thermosetting infrared cured paint backing with Poly-Glaze protective finish. Manufactured in accordance with ASTM C 1036. All edges protected by shock-absorbing, neoprene tubing MOUNTING BRACKETS 18 gauge cold rolled steel. Manufacturer Part Number 781-1824, 781-1830, 781-1836, 781-2430, 781-2436, 781-2460, 781-3636 Weight 30 lbs Dimensions 43 x 34 x 6 in Reflective Surface 1/4" plate glass Options Tempered glass, laminate glass, satin finish stainless steel, bright annealed stainless steel and Plexiglas Installation Verify all rough-in dimensions prior to installation. Secure concealed mounting bracket to wall with screws (not included) at holes provided. Mounting kits available through Bradley (ref. #899-026). Refer to technical data sheet #8880. Provide in-wall backing at mounting screw locations. Position mirror over mounting bracket to engage hanger tabs. Slide mirror down and lock into position.
undefined
SKU: #BRA 781
American Specialties
American Specialties Channel Frame Mirror
From $67.50
American Specialties ASI-0620 | Channel Frame Mirror American Specialties ASI-0620 Channel Frame Mirrors. Stainless Steel framed mirror that is perfect for all applications including schools and hospitals. Mirror shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be spot welded into H hanger. Mirror shall be secured to lower bracket with a locking screw. Finish of unit shall be protected from marring by easily removed self adhesive polyvinyl (PVC) film. FRAME Alloy 18-8 stainless steel, type 304, 20 gauge (.036 in. .91mm thick) . Roll-formed one piece construction. Exposed surfaces shall have No 4 satin finish. Edges and corners are burr free. GLASS Standard glazing is No 1 quality, 1/4 inch (6.4mm) thick plate/float, silver coated and hermetically sealed with a uniform copper plating, and warranted against silver spoilage for 15 years. Mirrors meet Federal Spec DD-M-411C, ASTM C-1036-91. FILLER Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 1/8 inch (3.2mm) total layer thickness. Manufacturer Part Number 0620-1622, 0620-1624, 0620-1630, 0620-1824, 0620-1830, 0620-1836, 0620-2060, 0620-2424, 0620-2430, 0620-2436 Weight 35 lbs Dimensions 43 x 29 x 4 in Materials Stainless Steel Channel Frame Plate Glass Mirror Frame Type Channel Frame Material x x (13 x 13 x 13 mm) 20 gauge type 304 satin finish stainless steel channel is a one piece roll formed member that encases mirror and backing revealing a tight mitered corner Glazing Options Units are supplied with 1/4" thick plate glass. Other glazing options are available. For a complete description of any other available glazing, see the MIRROR GLAZING OPTIONS chart. Fabrication Note Mirrors larger than 21sq. Ft. (1.95m2 ) are fabricated in two (2) or more sections to provide installation and handling ease Installation Install H wall brackets level and plumb per diagram location using ONLY No 10 Pan Head screws (by others). Hang mirror on brackets and tighten locking screw at bottom (note: this screw should be started prior to hanging mirror on wall brackets). For compliance with ADA Accessibility Guidelines, bottom edge of reflecting surface should be no higher than 40"(1016mm) above finished floor.
undefined
SKU: #ASI-0620
Bradley Corp.

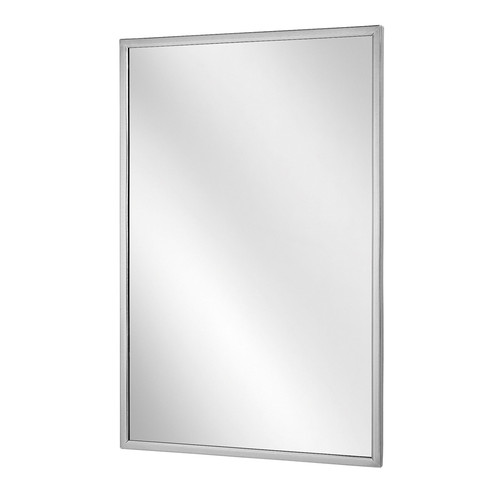

Bradley Corp. Series Angle Frame Mirror
From $80.00
Bradley Corp BRA 780 | Angle Frame Mirror Bradley BRA 780 Angle Frame Mirrors are a great product for your next project. Whether you are installing mirrors into an office building, hospitals or universities, the stainless steel frames make this series an easy to maintain product with a modern style. FRAME One-piece roll-formed stain less steel, 3/4" x 3/4" angle with corners welded, ground and polished smooth to a satin fi nish. Double strength continuous integral stiffener on all sides for added strength. Bevel on front of angle secures frame flush BACK Galvanized steel, secured to frame with concealed screws, equipped with integral horizontal hanging brackets. MIRROR first quality 1/4" fl oat glass, triple-silver-plated with electro-copper-plated layer and thermosetting infrared cured-paint backing with Poly-Glaze protective fi nish. Manufactured in accordance with ASTM C 1036. All edges protected by shock-absorbing, neoprene tubing. WALL HANGER 18 gauge cold rolled steel, all welded construction to form rigid template Manufacturer Part Number 780-1830, 780-1836, 780-2436, 780-2460 Weight 30 lbs Dimensions 43 x 34 x 6 in Reflective Surface 1/4" plate glass Options Tempered glass, laminate glass, #8 high-polish stainless steel, bright annealed stainless steel and plexiglas Installation Verify all rough-in dimensions prior to installation. Secure con cealed mounting bracket to wall with screws (not included) at holes provided. Mounting kits available through Bradley (ref. #899-026). Refer to technical data sheet #8880. Provide in-wall backing at mounting screw locations. Position mirror over mounting bracket to engage hanger tabs. Slide mirror down and lock into position.
undefined
SKU: #BRA 780
Bobrick

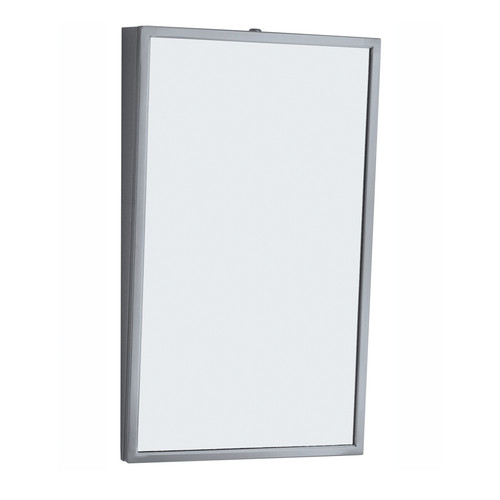

Bobrick Stainless Fixed Tilt Frame Mirror
From $273.84
Bobrick B-293 | Fixed Tilt Frame Mirror Bobrick B-293 Stainless Fixed Tilt Frame Mirrors are a great addition to your offices, medical building or university. The stainless steel frames bring an easy maintenance product with a modern look. Mirror is designed to provide full visibility for wheelchair patients in hospitals and nursing homes. FRAME 18-8 S, type 304, heavy-gauge stainless steel with satin finish. Tapers from 4" (100mm) depth at top to 1" (25mm) depth at bottom. Bevel design on front holds frame tightly against mirror. Corners are welded, ground, and polished smooth. Galvanized steel back and inner stiffener frame is one-piece welded construction with slots for mounting screws and integral screw-head lock. Designer's Note: Type 304 stainless steel provides superior corrosion resistance, compared to 400 Series stainless steel, against environmental moisture, hose-down maintenance and strong cleaning solutions. MIRROR No. 1 quality, 1/4" (6mm) select float glass, selected for silvering; electrolytically copper-plated by the galvanic process, guaranteed for 15 years against silver spoilage. All edges are polished and protected by plastic filler strips; back is protected by full-size, shock-absorbing, water-resistant, nonabrasive, 1/8" (3mm) thick polystyrene padding. Manufacturer Part Number 293-1830, 293-1836, 293-2436 Weight 30 lbs Dimensions 32 x 28 x 6 in Reflective Surface No.1 quality, 1/4" plate glass, warranted against silver spoilage for 15 years Operation Mirror is designed to provide full visibility for wheelchair patients in hospitals and nursing homes. Installation Mount vertically on wall with four screws, furnished by manufacturer, at points indicated by an S. Screws are to be located in wall with heads protruding 5/32" (4mm) from finish face of wall. Hang mirror by hooking mounting screw slots in mirror back over screws and pulling down on mirror 1" (25mm) until unit locks in place. 7/8" (22mm) clearance is required at top of mirror for installation. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with screws furnished. For other wall surfaces, provide fiber plugs or expansion shields for use with screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts.
undefined
SKU: #B-293
Bobrick

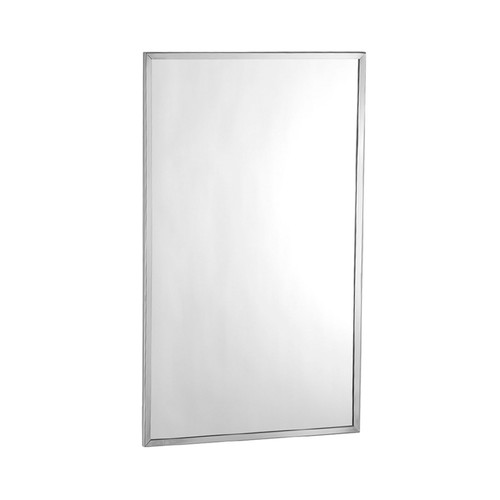

Bobrick Channel Frame Mirror
From $72.95
Bobrick B-165 | Channel Frame Mirror Bobrick B-165 Channel Frame Mirrors are great additions to any office building, hospital or school. The high quality stainless steel frame brings an easy maintenance product with a modern look. FRAME Type-430 stainless steel, 1/2" x 1/2" x 3/8" (13 x 13 x 9.5mm) channel with 1/4" (6mm) return at rear with bright polished finish. One piece frame with 90 degree mitered corners. Galvanized steel back has integral horizontal hanging brackets near the top for hanging the mirror and near the bottom to prevent the bottom of the mirror from pulling away from the wall. Locking devices secure mirror to concealed wall hanger. MIRROR No. 1 quality, 1/4" (6mm) select float glass: selected for silvering, electrolytically copper-plated by the galvanic process, and guaranteed for 10 years against silver spoilage. Corners are protected by friction-absorbing filler strips; back is protected by full-size, shock-absorbing, water-resistant, nonabrasive, 3/16" (5mm) thick polyethylene padding. CONCEALED WALL HANGER 20-gauge (0.9mm) galvanized steel. Incorporates lower support member, forming rigid rectangle, which engages lower backplate louvers to keep bottom of mirror against wall. Manufacturer Part Number 165-1824, 165-1830, 165-1836, 165-2430, 165-2436, 165-2448 Weight 30 lbs Dimensions 40 x 28 x 4 in Reflective Surface 1/4" thick plate glass, warranted against silver spoilage for 15 years Materials Type 430 stainless steel with bright-polished finish One piece frame with 90 degree mitered corners Frame screw permits easy replacement of glass Installation Mount wall hanger on wall with screws (furnished by manufacturer) at points indicated by an S. For plaster or dry wall construction, provide backing to comply with local building codes, then secure wall hanger with screws furnished. When providing a concealed backing, allow backing to cover minimum range of mounting hole locations shown on drawing. For other wall surfaces, provide fiber plugs or expansion shields for use with screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts. Hang mirror on wall hanger with all four backplate louvers engaged behind horizontal wall hanger members. Hang mirror on wall hanger with all four backplate louvers engaged behind horizontal wall hanger members. To do this, mirror must be centered in front of the wall hanger horizontally, pressed flat against the wall approximately 1" (25mm) above final position and then lowered into final position. Snap Locking Design Locking devices automatically secure mirror to concealed wall hanger when it is lowered into final position. Locking devices may be unlocked by inserting two flat blade screwdrivers behind each side of mirror near the bottom or under the bottom of the mirror and pulling mirror bottom forward and then up. Screw locking Design Lock mirror to wall hanger by tightening Phillips-head locking screws that are concealed in the bottom of frame at points indicated by a T. Mirror may be unlocked from wall hanger by loosening locking screws and lifting mirror off of concealed wall hanger
undefined
SKU: #B-165
American Specialties

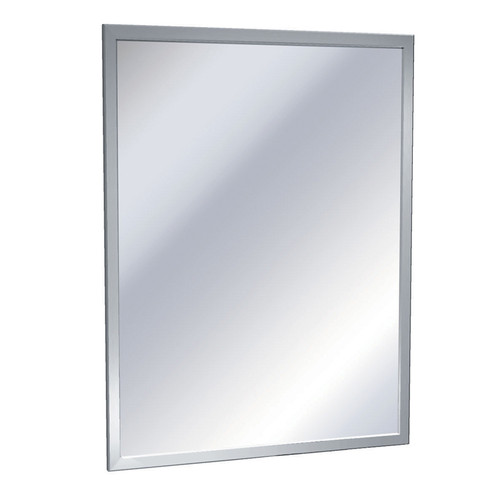

American Specialties Inter-Lok Angle Frame Plate Mirror
From $93.38
American Specialties ASI-0600 | Inter-Lok Angle Frame Plate Mirror Inter-Lok Stainless Steel Framed Mirror shall have frame fabricated of alloy 18-8 stainless steel, type 304, 18 gauge with mitered corners welded and polished. All exposed surfaces shall be No 4 satin finish. Mirror glazing shall be shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected with friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. An 18 gauge corrosion protected steel H bracket shall be supplied. Mirror shall be secured to vertical bracket with corrosion protected allen head locking screws furnished. Frame Alloy 18-8, type 304, 18gauge (.048 in. 1.2mm thick) stainless steel. Unitized all welded construction. Corners mitered, welded and polished. Exposed surfaces shall have No 4 satin finish. Edges and corners are burr free. Glass Standard glazing is No 1 quality, 1/4" inch (6.4mm) thick plate/float, silver coated and hermetically sealed with a uniform coating of electrolytic copper plating, and warranted against silver spoilage for 15 years. Mirrors meet Federal Spec DDM-411C, ASTM C-1036-91. Filler Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 1/8" inch (3.2mm) total layer thickness Manufacturer Part Number 0600-1624, 0600-1630, 0600-1824, 0600-1830, 0600-1836, 0600-2060, 0600-2430, 0600-2436 Weight 30 lbs Dimensions 42 x 28 x 4 in Reflective Surface Plate Glass - 1/4" (6mm) thick No 1 quality polished, silver coated and hermetically sealed with a uniform coating of electrolytic copper plating Frame Type Angle Frame Material x 5/8 (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish Glazing Options Units are supplied with 1/4" thick plate glass. Other glazing options are available. For a complete description see the Mirror Glazing OPTIONS Chart Installation Install bracket level and plumb as per diagram location using No 10 self tapping screws (by others). Hang mirror on bracket and tighten locking screws at top bottom. For compliance with ADA Accessibility Guidelines, bottom edge of reflecting surface should be no higher than 40" (1016mm) above finished floor.
undefined
SKU: #ASI-0600
American Specialties

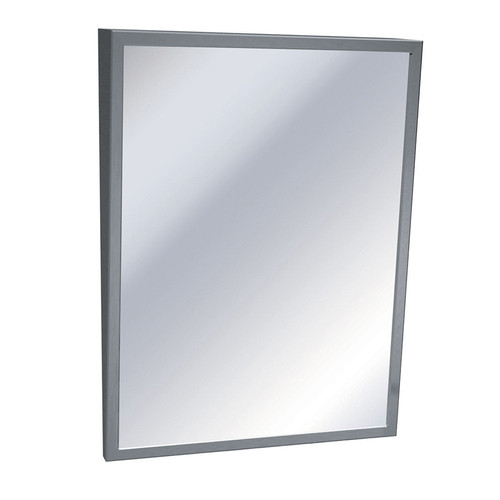

American Specialties Fixed Tilt Mirror
From $165.00
American Specialties ASI-0535 | Fixed Tilt Mirror American Specialties ASI 0535 Fixed Tilt Mirrors perfect for ADA Compliant restrooms. The sturdy, stainless steel frame is a great product for your restroom. Fixed Angle Tilted Mirror shall be fabricated of alloy 18-8 stainless steel, type 304, 20 gauge. Face shall be one piece construction free of miters or spot welded seams. All exposed surfaces shall have No 4 satin finish and be protected during shipment by plastic PVC film easily removable after installation. Concealed tamper resistant locking devices shall be provided. Mirrors shall be warranted for 15 years against silver spoilage. Offers visibility for wheelchair patients Manufacturer Part Number 0535-1630, 0535-1824, 0535-1830, 0535-1836, 0535-2430, 0535-2436 Weight 29 lbs Dimensions 40 x 28 x 8 in Reflective Surface Plate Glass - 1/4" (6mm) thick No 1 quality polished, silver coated and hermetically sealed with a uniform coating of electrolytic copper plating Frame Type Fixed Tilt Frame Material Alloy 18-8 stainless steel, type 304, 20 gauge, all exposed surfaces shall have No. 4 satin finish. Face shall be one piece construction free of miters or spot welded seams. Glazing Options Mirrors shall be supplied as standard with glazing option A . For a complete description and other choices of glazing options, see the Mirror Glazing OPTIONS Chart Installation Unit is surface mounted on wall or partition using four (4) No 10 self tapping screws (by others). Mounting holes through back are keyhole slots for hanging unit on pre-installed screws. Unit requires 5/8(16mm) clearance at top to engage screws in keyhole slots. For compliance with ADA Accessibility Guidelines, bottom of reflecting surface should be installed 40" (1016mm) max. above finished floor
undefined
SKU: #ASI-0535
Bobrick

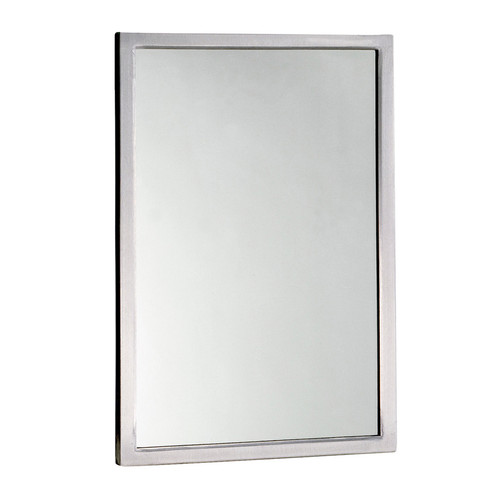

Bobrick Angle Frame Mirror
From $154.33
Bobrick B-290 | Angle Frame Mirror Stainless Steel, welded, angle frame mirror, Bobrick Model B-290 Series. Bobrick Mirror shall be framed with one-piece, type 304, stainless steel angle 3/4 in. x 3/4 in. Frame shall be roll-formed construction with continuous integral stiffener on all sides. Frame shall have beveled design on front of angle to hold mirror tightly against frame to prevent exposure to sharp edges. Corners shall be heliarc welded, ground and polished smooth. Exposed surfaces shall have satin finish with vertical grain. Mirror shall be No. 1 quality, 1/4 in. float/plate glass. All mirror edges shall be protected with plastic filler strips. Mirror back shall be protected by full size, shock absorbing, water-resistant, non-abrasive 1/8 in. thick polyethylene padding. Galvanized steel back shall have integral hanging brackets for mounting on concealed screws to permit glass replacement; attachment by rivets or tabs is not acceptable. Mirror shall be secured to hanger with concealed Phillips head locking setscrews in bottom of frame. FRAME 18-8 S, type 304, heavy-gauge stainless steel, 3/4" x 3/4" (19 x 19mm) angle with vertical-grain satin finish. One piece, roll-formed construction forms continuous integral stiffener on all sides. Bevel design on front of angle holds frame tightly against mirror. Corners of mirror frame are heliarc welded, ground and polish smooth. Galvanized steel back is fastened to frame with concealed screws and equipped with integral horizontal hanging brackets near the top and bottom of the mirror for hanging the mirror and to prevent the mirror from pulling away from the wall. Locking devices secure mirror to concealed wall hanger. In Screw Locking Design(see figure 2), concealed Philips-head locking screws securely fasten mirror to wall MIRROR No. 1 quality, 1/4" (6mm) select float glass (standard glass): selected for silvering, electrolytically copper-plated by the galvanic process, and guaranteed for 15 years against silver spoilage. All edges protected by plastic filler strips; back is protected by full-size, shock-absorbing, water-resistant, nonabrasive, 3/16" (5mm) thick polyethylene padding. CONCEALED WALL HANGER 20-gauge (0.9mm) galvanized steel. Incorporates lower support member, forming rigid rectangle, which engages lower backplate louvers to keep bottom of mirror against wall. Manufacturer Part Number 290 -1830, 290 -1836, 290 -2430, 290 -2436, 290 -2448, 290 -2460 Weight 30 lbs Dimensions 32 x 28 x 6 in Reflective Surface No.1 quality 1/4" thick plate glass, warranted against silver spoilage for 15 years Materials Type 304 stainless steel angle with satin finish, Corners heliarc welded, ground and polished smooth Beveled frame edge at mirror for improved appearance Options Polished Stainless Steel, Tempered Glass, or Laminated Glass reflective surfaces are available as special order. Installation Mount wall hanger on wall with screws (furnished by manufacturer) at points indicated by an S. For plaster or dry wall construction, provide backing to comply with local building codes, then secure wall hanger with screws furnished. When providing a concealed backing, allow backing to cover range of mounting hole locations shown on drawing. For other wall surfaces, provide fiber plugs or expansion shields for use with screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts. Hang mirror on wall hanger with all four backplate louvers engaged behind horizontal wall hanger members. To do this, mirror must be centered in front of the wall hanger horizontally, pressed flat against the wall approximately 1" (25mm) above final position and then lowered into final position. Snap Locking Design Locking devices automatically secure mirror to concealed wall hanger when it is lowered into final position. Locking devices may be unlocked by inserting two flat blade screwdrivers behind each side of mirror near the bottom or under the bottom of the mirror and pulling mirror bottom forward and then up. Screw locking D
undefined
SKU: #B-290
Bobrick

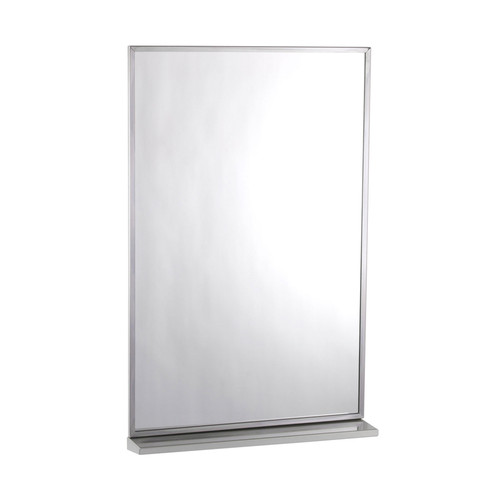

Bobrick Channel Frame Mirror with Shelf
From $172.10
Bobrick B-166 | Channel Frame Mirror with Shelf Bobrick B-166 Channel Frame Mirror with Shelf is a wonderful addition to any facilities building, hospital or school. The high quality stainless steel frame brings an easy maintenance product with a modern look. FRAME Type 430 stainless steel, 1/2" x 1/2" x 3/8" (13 x 13 x 9.5mm) channel 1/4" (6mm) return at rear with bright polished finish. One-piece frame with 90 degree mitered corners. Galvanized steel back has integral horizontal hanging brackets near the top for hanging the mirror and near the bottom to prevent the bottom of the mirror from pulling away from the wall. Locking devices secure mirror to concealed wall hanger. In Screw Locking Design(see figure 2), concealed Phillips head locking screws securely fasten mirror to wall hanger. SHELF 18-8 S, type 304, 22-gauge (0.8mm) stainless steel with satin finish. 3/8" (10mm) return edges on front and sides with front edge hemmed for additional safety. Shelf is welded to mirror frame and reinforced by concealed 16-gauge (1.6mm) stainless steel brackets. No exposed rivet-heads, screws, or fasteners of any type appear on frame or shelf. MIRROR No. 1 quality, 1/4" (6mm) select float glass: selected for silvering, electrolytically copper-plated by the galvanic process, and guaranteed for 10 years against silver spoilage. Corners are protected by friction-absorbing filler strips; back is protected by full-size, shock-absorbing, water-resistant, nonabrasive, 3/16" (5mm) thick polyethylene padding. CONCEALED WALL HANGER 20-gauge (9.0mm) galvanized steel. Incorporates lower support member, forming rigid rectangle, which engages lower backplate louvers to keep bottom of mirror against wall. Manufacturer Part Number 166-1824, 166-1830, 166-1836, 166-2436 Weight 30 lbs Dimensions 40 x 30 x 8 in Reflective Surface 1/4" thick plate glass, warranted against silver spoilage for 15 years Materials Type 430 stainless steel with bright-polished finish One piece frame with 90 degree mitered corners Frame screw permits easy replacement of glass Installation Mount wall hanger on wall with screws (furnished by manufacturer) at points indicated by an S. For plaster or dry wall construction, provide backing to comply with local building codes, then secure wall hanger with screws furnished. When providing a concealed backing, allow backing to cover minimum range of mounting hole locations shown on drawing. For other wall surfaces, provide fiber plugs or expansion shields for use with screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts. Hang mirror on wall hanger with all four backplate louvers engaged behind horizontal wall hanger members. To do this, mirror must be centered in front of the wall hanger horizontally, pressed flat against the wall approximately 1" (25mm) above final position and then lowered into final position. Snap Locking Design Locking devices automatically secure mirror to concealed wall hanger when it is lowered into final position. Locking devices may be unlocked by inserting two flat blade screwdrivers behind each side of mirror near the bottom or under the bottom of the mirror and pulling mirror bottom forward and then up. Screw locking Design Lock mirror to wall hanger by tightening Phillips-head locking screws that are concealed in the bottom of frame by points indicated by a T. Mirror may be unlocked from wall hanger by loosening locking screws and lifting mirror off of concealed wall hanger.
undefined
SKU: #B-166
American Specialties

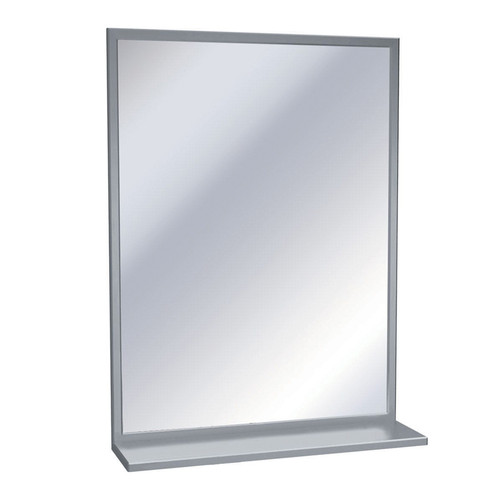

American Specialties Channel Frame Mirror with Shelf
From $153.76
American Specialties ASI-0625 | Channel Frame Mirror American Specialties ASI 0625 Channel Frame Mirror with Shelf. Stainless Steel frame and mirror great for schools, hospitals and office buildings. Mirror glazing shall be warranted for 15 years against silver spoilage. All edges of mirror shall be protected by friction and chafe absorbing fillers. Back of mirror shall be protected by full size shock-absorbing water-resistant filler and full size one piece 20 gauge corrosion protected steel. Top and bottom wall mounting brackets shall be spot welded into an H for easy installation. Mirror shall be secured to lower bracket with a locking screw. Finish of unit shall be protected from marring by easily removed self adhesive polyvinyl (PVC) film. FRAME Stainless steel alloy 18-8, type 304, 20 gauge (.036 in. .91mm thick) stainless steel. Roll-formed one piece construction. Exposed surfaces shall have No 4 satin finish. Edges and corners are burr free. SHELF Stainless steel alloy 18-8, type 304, 18 gauge (.048 in. 1.2mm thick) stainless steel. Unitized all welded construction. Exposed surfaces shall have No 4 satin finish. Edges and corners are burr free GLASS Standard glazing is No 1 quality, 1/4"inch (6mm) thick plate/float, silver coated and hermetically sealed with a uniform copper plating, and warranted against silver spoilage for 15 years. Mirrors meet Federal Spec. DD-M-411C, ASTM -C1036-91. FILLER Expanded polyethylene microcell foam sheet material, abrasion resistant and shock absorbing, water resistant, 1/8 inch (3.2m) total layer thickness. Manufacturer Part Number 0625-1624, 0625-1630, 0625-1824, 0625-1830, 0625-1836, 0625-2430, 0625-2436 Weight 35 lbs Dimensions 43 x 29 x 8 in Materials Stainless Steel Chan-Lok Frame Plate Glass Mirror with Shelf Frame Type Channel Frame Material " x " x " (13 x 13 x 13 mm) 20 gauge type 304 satin finish stainless steel channel is a one piece roll formed member that encases mirror and backing revealing a tight mitered corner Shelf Width 5" Shelf Material 18 gauge stainless steel with satin finish and all edges returned and hemmed for maximum rigidity and safety Glazing Options Units are supplied with 1/4 thick plate glass. Other glazing options are available. For a complete description of any other available glazing, see the MIRROR GLAZING OPTIONS chart. Fabrication Note Mirrors larger than 21 sq. ft. (1.95m2 ) are fabricated in two or more sections to provide installation and handling ease Installation Install H wall brackets level and plumb per diagram location using ONLY No 10 Pan Head screws (by others). Hang mirror on brackets and tighten locking screw at bottom (Note: this screw should be started prior to hanging frame). For compliance with ADA Accessibility Guidelines, bottom edge of reflecting surface should be no higher than 40" (1016mm) above finished floor(AFF).
undefined
SKU: #ASI-0625
